I want to be able to recreate a small stage/camera setup with Povray.

For some scenes an efficient backdrop may be needed. To that end, I
could use some pointers on a good starting place.

Test_tile_b.png is a sample of the direction I'll start with.
IMG_5687_crop.jpg photo of two of the paper's I have.

I'm happy with the square texture so far. I think it will parse/render
quickly.
#declare Square_pattern_=texture{
  square
   texture {pigment {color rgbft <0.000,0.000,0.000,0.000,0.000>}},
   texture {gradient < 1.000, 0.000, 1.000 >
    texture_map {
     [0.000,pigment {color rgbft <1.000,1.000,1.000,0.000,0.000>}]
     [0.500,pigment {color rgbft <1.000,1.000,1.000,0.000,0.000>}]
     [0.500,pigment {color rgbft <0.000,0.000,0.000,0.000,0.000>}]
     [1.000,pigment {color rgbft <0.000,0.000,0.000,0.000,0.000>}]
    }
    scale <0.150,0.150,0.150>
   },
   texture {pigment {color rgbft <1.000,1.000,1.000,0.000,0.000>}},
   texture {gradient < 1.000, 0.000, 1.000 >
    texture_map {
     [0.000,pigment {color rgbft <1.000,1.000,1.000,0.000,0.000>}]
     [0.500,pigment {color rgbft <1.000,1.000,1.000,0.000,0.000>}]
     [0.500,pigment {color rgbft <0.000,0.000,0.000,0.000,0.000>}]
     [1.000,pigment {color rgbft <0.000,0.000,0.000,0.000,0.000>}]
    }
    scale <0.150,0.150,0.150>
   }
}

The other I've made stacked box{} statements.
Witch I hope to use in an pigment{object{}} pattern or
pigment{image_map{function{}}}.

Help needed here :-)
I want a <u,v> map-able texture (material?) for my background.

Comments and suggestions welcome.

Stephen S

Post a reply to this message

Attachments:
Download 'test_tile_b.png' (103 KB) Download 'img_5687_crop.jpg' (124 KB) Download 'test_tile_d.png' (10 KB) Download 'test_tile_a.png' (14 KB)

Preview of image 'test_tile_b.png'

Preview of image 'img_5687_crop.jpg'

Preview of image 'test_tile_d.png'

Preview of image 'test_tile_a.png'

On 31/12/2017 12:59, StephenS wrote:
> Help needed here :-)
> I want a <u,v> map-able texture (material?) for my background.
>
> Comments and suggestions welcome.
>

I like the checked texture. It is un-fussy.

I've mostly used uv mapping with mesh2 objects and with them you need to
use a 3rd party program like uv mapper or Blender, to do the mapping.

With povray objects like spheres, cylinders etc you need to use a
mapping that has a spherical or cylindrical projection.
So it depends on what you want to map to what.

--

Regards
     Stephen

Post a reply to this message

On 12/31/2017 7:59 AM, StephenS wrote:
...
> I'm happy with the square texture so far. I think it will parse/render
> quickly.
...The original has a prism{bezier_spline...}.
A better setup, bicubic_patch{} object with uv mapping for curved back.

Scaling the front straight edge texture is easy, how do I scale the
curved surface texture, other than trial and error?

Stephen S

Post a reply to this message

Attachments:

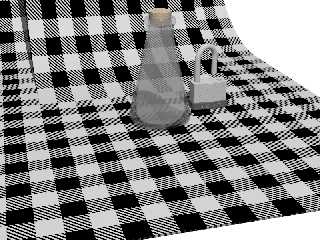

Download 'checker_stage_e.png' (168 KB)

Preview of image 'checker_stage_e.png'

On 12/31/2017 1:58 PM, Stephen wrote:
...
>
> I like the checked texture. It is un-fussy.
...

Yes, but near impossible to auto-focus my camera on the objects, and not
the background.

Stephen S

Post a reply to this message

This reminds me of:

http://hea-www.harvard.edu/~fine/POV/fabric.html

Post a reply to this message

Stephen <mca### [at] aolcom> wrote:

>
> I like the checked texture. It is un-fussy.
>
> I've mostly used uv mapping with mesh2 objects and with them you need to
> use a 3rd party program like uv mapper or Blender, to do the mapping.
>
> With povray objects like spheres, cylinders etc you need to use a
> mapping that has a spherical or cylindrical projection.
> So it depends on what you want to map to what.
>

One idea I've come up with:
Beginning with v3.7.1 (which would be one of the current beta development
versions), POV-Ray's CYLINDER object can now have u-v mapping. (I'm currently
using 3.7.1 beta 9.)

With an 'open' cylinder-- and some appropriate clipped-by planes-- the curving
section of Stephen S's backdrop can be made to look right. I've been trying to
do that, but it's...tricky, because of the way uv-mapping works on cylinders,
and because of the way pigments or image_map tiles need to be scaled on it to
look correct. AND to get that scaling to 'match up' with the scaled pigments on
his vertical and horizontal objects, to look like a seamless blend. Not easy,
but it can be done.

Post a reply to this message

I'd probably be strongly tempted to use 1, or 9, bicubic (Bezier) patches.

http://www.joshuarenglish.com/cyclopedia/uv_bicubic.html

You can just uv-map those directly.

Post a reply to this message
