"LanuHum" <Lan### [at] yandexru> wrote:
> "Mr" <m******r******at_hotmail_dot_fr> wrote:
> > "LanuHum" <Lan### [at] yandexru> wrote:
> > > Hi! I am interested in the question: is it possible to create a thread without a
> > > mesh of triangles? We need a smooth surface of the thread in the picture
> > > 38400x21600 (4K * 10)
> >
> > Hi, Also, though it may be less physically accurate with respect to its
> > geometry,
> > this scene on Jaime Vives Piqueres site still works out of the box and features
> > a nice lighting and composition setup:
> > http://ignorancia.org/uploads/zips/boltstill.zip
> > ....If you just drop all of the lightsys macro files within the same folder :
> > http://ignorancia.org/uploads/zips/lightsys4b.zip
>
> Hi! Thanks, I saw a height_field in the file. This is a bad decision for my
> purpose. Scattering media with photons example + drum kit. 2 Up pictures from
> documentation and demo scenes. I want to create a real scene based on two
> examples from the documentation. The camera will be in different locations. In
> some cases, this spiral thread will be perfectly visible.I need clear, smooth
> lines with no signs of a low-poly gamedev.

Why do you mention low poly? it's non-mesh... also the heightfield is used only
for the head, which you don't need.
But anyway many other answers before I mentioned Jaime's offer other non-mesh
alternatives so by now, you end up having too many options, so you need more
time to just pick one of them :-P The scene will be awesome!

Post a reply to this message

"LanuHum" <Lan### [at] yandexru> wrote:
>
> Thank you. I understand macros very poorly, but I can create a spiral from a
> sphere_sweep. Then subtract the spiral from the cylinder. But, I want to achieve
> a realistic profile.

Either of the isosurface solutions Robert Munyer and I posted would satisfy this
profile.

https://news.povray.org/5eec257c%241%40news.povray.org
https://news.povray.org/875zph8073.fsf%40munyer.com

Post a reply to this message

"Mr" <m******r******at_hotmail_dot_fr> wrote:
> Why do you mention low poly? it's non-mesh... also the heightfield is used only
> for the head, which you don't need.
> But anyway many other answers before I mentioned Jaime's offer other non-mesh
> alternatives so by now, you end up having too many options, so you need more
> time to just pick one of them :-P The scene will be awesome!

My dear friend, I need a version that will be included in our Pov@ble addon. You
have to understand that I'm not going to write a pov file with my hands, but I'm
going to get it from a blender.

Post a reply to this message

"To create threads in Blender, enable the built-in "Bolt Factory" add-on in Edit
> Preferences > Add-ons. Once active, press Shift+A, select Mesh, and choose
Bolt to generate customizable threaded bolts or nuts. Adjust settings like
Major/Minor Pitch for size and Crest/Root for shape."

- BE

Post a reply to this message

"Cousin Ricky" <rickysttATyahooDOTcom> wrote:
> "LanuHum" <Lan### [at] yandexru> wrote:
> >
> > Thank you. I understand macros very poorly, but I can create a spiral from a
> > sphere_sweep. Then subtract the spiral from the cylinder. But, I want to achieve
> > a realistic profile.
>
> Either of the isosurface solutions Robert Munyer and I posted would satisfy this
> profile.
>
> https://news.povray.org/5eec257c%241%40news.povray.org
> https://news.povray.org/875zph8073.fsf%40munyer.com

Thanks. The best option for me is this:

isosurface { //-------------------------------------------------------------
  function{
     f_helix1(
        x,y,z,
        1,    // number of helixes, (1 = single helix, 2 = double helix etc.)
        44,   // period,      turns on the length of 2*pi
        0.07, // minor radius,
        0.8, // major radius,
        1,    // shape parameter,
        0.3,  // cross section type, (0.0 to 1.0 = square ... rounded to circle
              //                 over 2.0 to 3.0 = rounded to diamond and
concave diamond
        45     // cross section rotation angle
      )
  }
 contained_by {box {<-1,-1,-1>,<1,1,1>}}
 max_gradient 8

 texture{ pigment{ color rgb <1,0.9,0.5>}
          finish {specular 0.1 roughness 0.1 phong 0.2}
        }

} // end of isosurface -------------------------------------------------------

Proper geometry with a radius on the edge and little text.
Mr, this needs to be added to the Pov@ble Blender addon : Menu Add/ Povray
shapes / Add Thread/  )))

Post a reply to this message

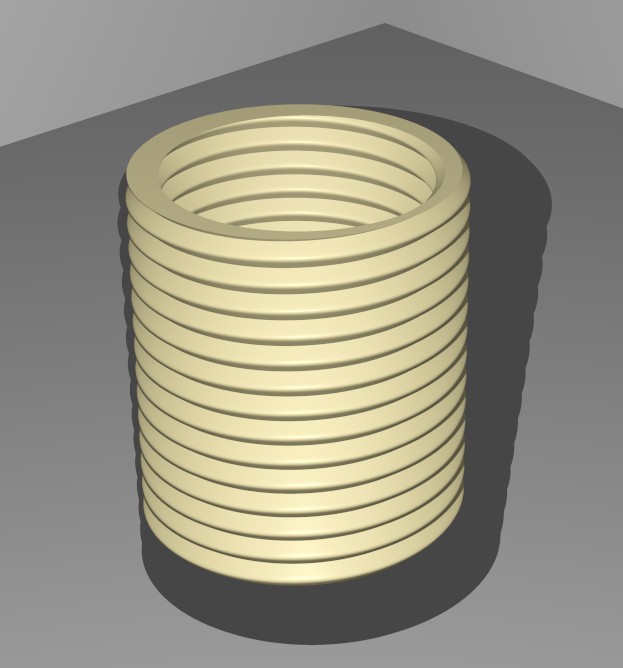

Attachments:
Download 'scene.jpg' (51 KB)

Preview of image 'scene.jpg'

"Bald Eagle" <cre### [at] netscapenet> wrote:
> "To create threads in Blender, enable the built-in "Bolt Factory" add-on in Edit
> > Preferences > Add-ons. Once active, press Shift+A, select Mesh, and choose
> Bolt to generate customizable threaded bolts or nuts. Adjust settings like
> Major/Minor Pitch for size and Crest/Root for shape."
>
> - BE

Create that bolt in the blender for the entire scene, select the render Cycles,
set the output image size to 38400x21600 and count the seconds until the
computer dies.

Post a reply to this message

"LanuHum" <Lan### [at] yandexru> wrote:

> Create that bolt in the blender for the entire scene, select the render Cycles,
> set the output image size to 38400x21600 and count the seconds until the
> computer dies.


> Thanks. The best option for me is this:
>
> isosurface {

So, I'm trying to understand: you're trying to model this in POV-Ray or Blender?

A helix is a fairly simple thing to model, and you could make one with the exact
profile that you want by creating a mesh with smooth triangles.

The basic helix is:
X = radius * cos (T);
Y = B * T;
Z = radius * sin (T);

And you just sort of model the profile, spin it a bit, and make quads that you
split into triangles. If you go around once, you can probably just make that one
small mesh and union {} together a string of them.

- BE

Post a reply to this message

"Bald Eagle" <cre### [at] netscapenet> wrote:
> "LanuHum" <Lan### [at] yandexru> wrote:
>
> > Create that bolt in the blender for the entire scene, select the render Cycles,
> > set the output image size to 38400x21600 and count the seconds until the
> > computer dies.
>
>
> > Thanks. The best option for me is this:
> >
> > isosurface {
>
> So, I'm trying to understand: you're trying to model this in POV-Ray or Blender?
>

>
> - BE

I am a member of the Pov@Ble project. Create a scene in Blender and export it to
a .pov file. Right now I'm trying to create a very heavy scene that the GPU
won't be able to calculate. That's why I'm talking about the size of the output
image of 50-100!!! 4k monitors.

Post a reply to this message

"Bald Eagle" <cre### [at] netscapenet> wrote:
> So, I'm trying to understand: you're trying to model this in POV-Ray or Blender?
> - BE

Blender draws its own objects, but when exporting, I can replace the mesh with a
isosurface.

Post a reply to this message

#version 3.8;
global_settings {assumed_gamma 1.0 }

camera {
 location <0, 1, -3>
 right x*image_width/image_height
 up y
 look_at <0, 1, 0>
}

light_source {<10, 20, -50> rgb 1}
sky_sphere {pigment {rgb 1}}


#declare TPI = 11; // (Threads per inch / TPI)
#declare DM = 0.625/2;
#declare Dm = 0.5167/2;
#declare Angle = 60;

#declare Pitch = 1/TPI;
#declare CompAngle = 90-Angle;
#declare Asin = atan(radians(CompAngle));
#declare dx = DM - Dm;
#declare dy = dx * Asin;
#declare AL = 2*dy; // total Angled length
#declare FL = (Pitch - AL)/2; // Flat length

// Profile
#declare P = array {
      <Dm, 0, 0>,
      <DM, dy, 0>,
      <DM, dy+FL, 0>,
      <Dm, dy+FL+dy, 0>,
      <Dm, dy+FL+dy+FL, 0>
}

#declare OldPoint = array[5][3];
#declare NewPoint = array[5][3];

#macro MakeBoltProfile (Pitch,Steps, Tex, Copies)
      #local Increment = tau/Steps;
      #local Unit =
      union {
      #for (Theta, 0, tau, Increment)

            #for (Pt, 0, 4)
            #declare NewPoint[Pt][0] = P[Pt].x * cos (Theta);
            #declare NewPoint[Pt][1] = P[Pt].y + Pitch * Theta/tau;
            #declare NewPoint[Pt][2] = P[Pt].x * sin (Theta);
            #end

            #if (Theta > 0)
            #for (T, 0, 3)
                  triangle {<OldPoint[T][0], OldPoint[T][1], OldPoint[T][2]>,
                        <NewPoint[T][0], NewPoint[T][1], NewPoint[T][2]>,
                        <OldPoint[T+1][0], OldPoint[T+1][1], OldPoint[T+1][2]>
                  }
                  triangle {<OldPoint[T+1][0], OldPoint[T+1][1],
OldPoint[T+1][2]>,
                        <NewPoint[T][0], NewPoint[T][1], NewPoint[T][2]>,
                        <NewPoint[T+1][0], NewPoint[T+1][1], NewPoint[T+1][2]>
                  }
            #end
          #end

            #declare OldPoint = NewPoint;
      #end
      texture {Tex}
      }
      #for (C, 1, Copies)
            object {Unit translate y*Pitch*C*1}
      #end
#end

#declare MyTex = texture {pigment {rgb 0.9} finish {specular 0.4 reflection
0.01}}

MakeBoltProfile (Pitch, 72, MyTex, 25)

Post a reply to this message

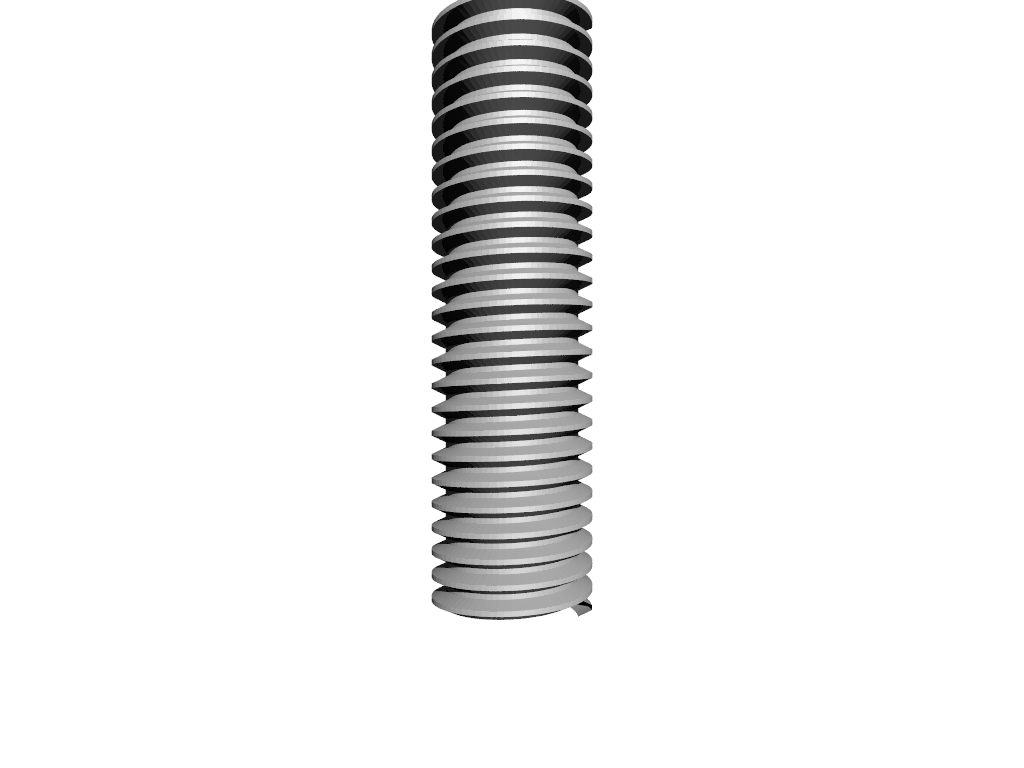

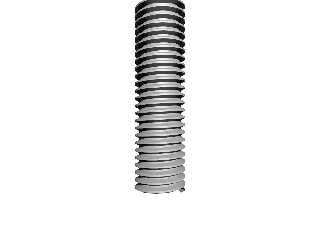

Attachments:
Download 'lanuhumboltmesh.png' (83 KB)

Preview of image 'lanuhumboltmesh.png'
