Just in case any of you were getting bored of ringworlds...
This is a substantial improvement on my previous effort. The ring is pretty
much the dimensions stated in the book (and elsewhere here) - 90 million
miles in radius (although it should be 95 I believe), with 20 shadow
squares orbiting 12 million miles from the sun. The sun is an area_light 1
million miles in diameter.
The atmospheric effects are of course the most difficult, and in this regard
I cheated somewhat - the haze is merely a ground fog, and the blue sky is a
semitransparent sky sphere about a million miles wide, i.e. between the
camera and the arch.
I think the landscape is of realistic dimensions, but sadly the clouds are
slightly exaggerated - they are 200 miles in the air, with the camera at an
altitude of 100 miles. The reason for this is that I couldn't place the
camera any lower without some kind of precision artifact creeping into the
lower half of the image (I'll post an example in a bit).
Post a reply to this message
Attachments:

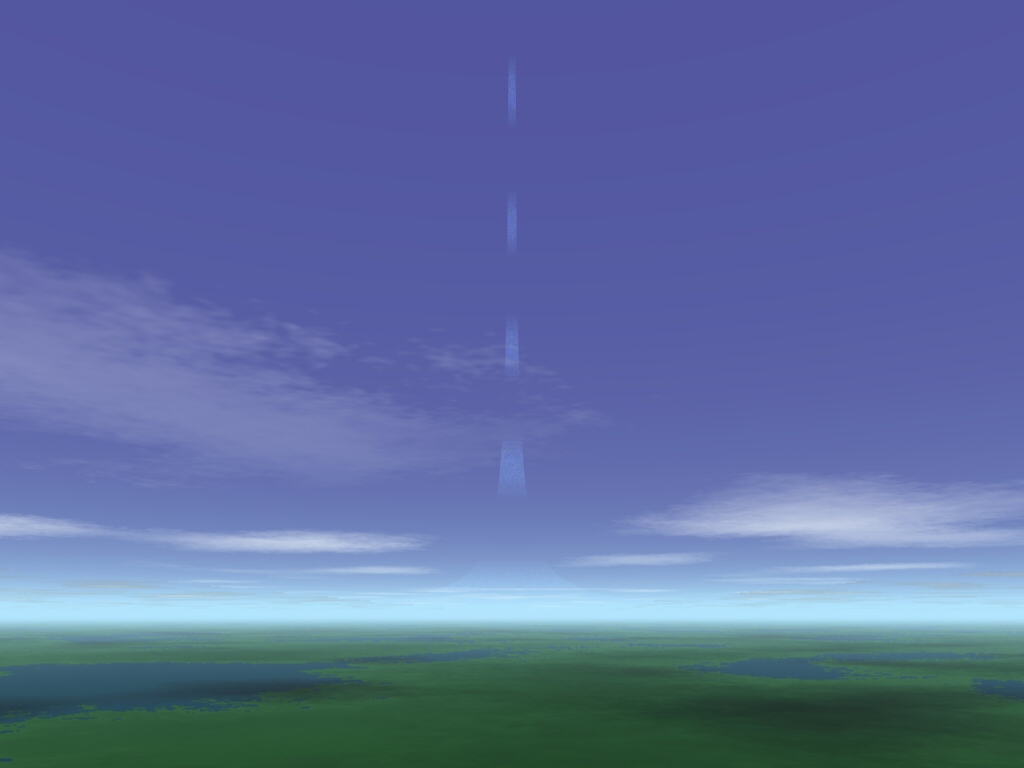

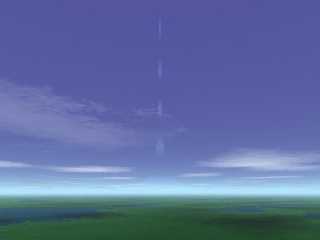

Download 'ringworld_1.jpg' (119 KB)
Preview of image 'ringworld_1.jpg'
![ringworld_1.jpg](/povray.binaries.images/attachment/%3Cweb.4360929f30852916731f01d10%40news.povray.org%3E/ringworld_1.jpg?ttop=443866&toff=4950&preview=1)
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
Here's the other image.
Oh, and apologies to Alain - there are indeed large penumbrae; indeed,
almost half of every daylight period on the Ringworld would be, to some
degree, partially-lit.
Bill
Post a reply to this message
Attachments:

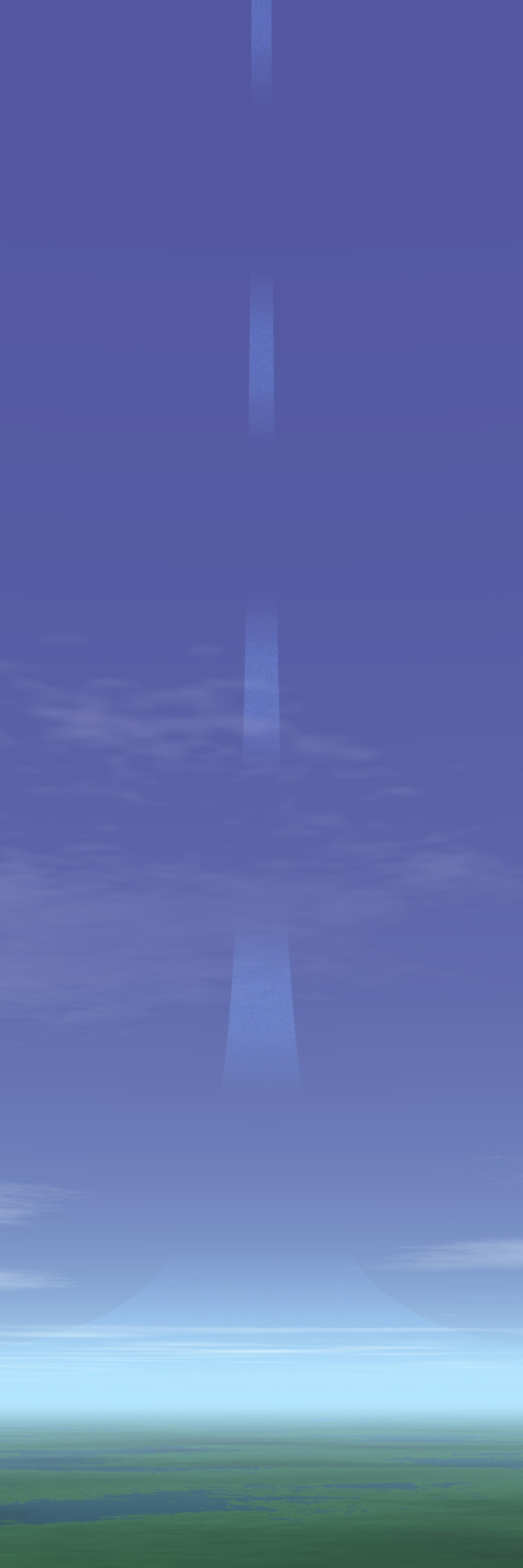

Download 'ringworld_2.jpg' (197 KB)
Preview of image 'ringworld_2.jpg'
![ringworld_2.jpg](/povray.binaries.images/attachment/%3Cweb.43609583ca18a3ea731f01d10%40news.povray.org%3E/ringworld_2.jpg?ttop=443866&toff=4950&preview=1)
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
"Bill Pragnell" <bil### [at] hotmail com> schreef in bericht
news:web.4360929f30852916731f01d10@news.povray.org...
> Just in case any of you were getting bored of ringworlds...
>
> This is a substantial improvement on my previous effort. The ring is
pretty
> much the dimensions stated in the book (and elsewhere here) - 90 million
> miles in radius (although it should be 95 I believe), with 20 shadow
> squares orbiting 12 million miles from the sun. The sun is an area_light 1
> million miles in diameter.
>
> The atmospheric effects are of course the most difficult, and in this
regard
> I cheated somewhat - the haze is merely a ground fog, and the blue sky is
a
> semitransparent sky sphere about a million miles wide, i.e. between the
> camera and the arch.
>
> I think the landscape is of realistic dimensions, but sadly the clouds are
> slightly exaggerated - they are 200 miles in the air, with the camera at
an
> altitude of 100 miles. The reason for this is that I couldn't place the
> camera any lower without some kind of precision artifact creeping into the
> lower half of the image (I'll post an example in a bit).
>
Excellent images, both of them! The atmosphere is much better than in my own
experiments. I am afraid that we have to cheat a bit to get it really right.
In truth, because of the dimensions, the whole *foreground* is a landscape
in itself, almost separate from the background arch.
Thomas
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
Both of your WIPs are great.
I've been thinking a bit about having a go
at Rama.. But, I need to read it again
before that.
Both these posts inspired me to
get in gear :)
"Thomas de Groot" <t.d### [at] inter nl net> skrev i meddelandet
news:4360cd4a@news.povray.org...
>
> "Bill Pragnell" <bil### [at] hotmail com> schreef in bericht
> news:web.4360929f30852916731f01d10@news.povray.org...
>> Just in case any of you were getting bored of ringworlds...
>>
>> This is a substantial improvement on my previous effort. The ring is
> pretty
>> much the dimensions stated in the book (and elsewhere here) - 90 million
>> miles in radius (although it should be 95 I believe), with 20 shadow
>> squares orbiting 12 million miles from the sun. The sun is an area_light
>> 1
>> million miles in diameter.
>>
>> The atmospheric effects are of course the most difficult, and in this
> regard
>> I cheated somewhat - the haze is merely a ground fog, and the blue sky is
> a
>> semitransparent sky sphere about a million miles wide, i.e. between the
>> camera and the arch.
>>
>> I think the landscape is of realistic dimensions, but sadly the clouds
>> are
>> slightly exaggerated - they are 200 miles in the air, with the camera at
> an
>> altitude of 100 miles. The reason for this is that I couldn't place the
>> camera any lower without some kind of precision artifact creeping into
>> the
>> lower half of the image (I'll post an example in a bit).
>>
> Excellent images, both of them! The atmosphere is much better than in my
> own
> experiments. I am afraid that we have to cheat a bit to get it really
> right.
> In truth, because of the dimensions, the whole *foreground* is a landscape
> in itself, almost separate from the background arch.
>
> Thomas
>
>
>
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
"Stefan Persson" <azy### [at] hotmail com> schreef in bericht
news:43617930$1@news.povray.org...
> Both of your WIPs are great.
> I've been thinking a bit about having a go
> at Rama.. But, I need to read it again
> before that.
> Both these posts inspired me to
> get in gear :)
>
Excellent! That is what these forum's (fora?) are for!!
Thomas
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
Thomas de Groot wrote:
>
> Excellent! That is what these forum's (fora?) are for!!
>
forums!
SCNR ;-)
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
"Stefan Persson" <azy### [at] hotmail com> wrote:
> Both of your WIPs are great.
> I've been thinking a bit about having a go
> at Rama.. But, I need to read it again
> before that.
It's useful having such technically-minded authors - they provide complete
blueprints in prose, with dimensions and everything. It's almost as if they
knew that one day ppl like us would sit down in front of our difference
engines and build their creations as virtual realty...
> Both these posts inspired me to
> get in gear :)
Why did I come back to using POV after 4+ years of inactivity? Inspiration
gained from lurking here, of course... :)
Bill
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |

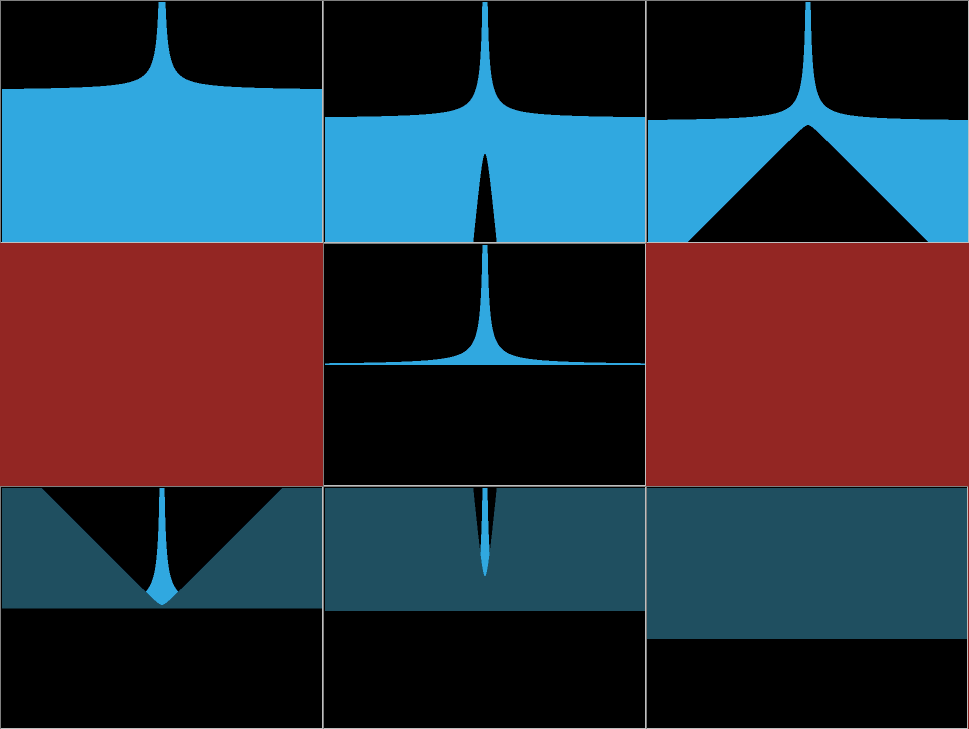

Right, just to illustrate this suspected precision glitch, here's 7 images
of a simplified Ringworld (please excuse the crudity of the composite).
The Ring is a hollow open cylinder 1 million units tall and 90 million units
in radius, with a light at the centre. I've translated it by 90 million y
so that the origin lies on the Ring surface with the x axis at a tangent.
The first three images are, left to right, a camera y = 100, 10, 1.
The middle image is camera y = 0.
The final three images are, left to right, a camera y = -1, -10, -100.
Firstly, Thomas, do you see the same thing with your Ring?
Secondly, can anyone clarify what exactly is happening here? Is it a
precision problem, or something else?
code:
camera { location <0, 100, 0>
up <0, 1, 0>
right <4/3, 0, 0>
direction <0, 0, FoV_75>
look_at <-1000, 0, 0> }
#declare Ring = union {
light_source { <0, 0, 0> color White }
cylinder { <0, 0, -500000>, <0, 0, 500000>, 90000000 open hollow
pigment { color SkyBlue }
finish { ambient 0.5 } } }
object { Ring translate <0, 90000000, 0> }
Bill, confused.
Post a reply to this message
Attachments:
Download 'ringtest.png' (9 KB)
Preview of image 'ringtest.png'
![ringtest.png](/povray.binaries.images/attachment/%3Cweb.4362127eca18a3ea731f01d10%40news.povray.org%3E/ringtest.png?ttop=443866&toff=4950&preview=1)
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
> It's useful having such technically-minded authors - they provide complete
> blueprints in prose, with dimensions and everything. It's almost as if
they
> knew that one day ppl like us would sit down in front of our difference
> engines and build their creations as virtual realty...
Yep, and I need to get the images back in my head.
All I remember is that it's a 5x2 km cylinder .. hehe
But, yes, Clarke usually desbribes everything in a most
detailed technical way. On the other hand authors like Asimov
leaves more to the imagination.. I don't know which is better
from the artists point of view. I mean, the first, like you said,
provide almost blueprints.. but that also means that you have
less freedom.
Post a reply to this message
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
|
![](/i/fill.gif) |
| ![](/i/fill.gif) |
| ![](/i/fill.gif) |
|
![](/i/fill.gif) |
"Bill Pragnell" <bil### [at] hotmail com> schreef in bericht
news:web.4362127eca18a3ea731f01d10@news.povray.org...
> Right, just to illustrate this suspected precision glitch, here's 7 images
> of a simplified Ringworld (please excuse the crudity of the composite).
>
> The Ring is a hollow open cylinder 1 million units tall and 90 million
units
> in radius, with a light at the centre. I've translated it by 90 million y
> so that the origin lies on the Ring surface with the x axis at a tangent.
>
> The first three images are, left to right, a camera y = 100, 10, 1.
> The middle image is camera y = 0.
> The final three images are, left to right, a camera y = -1, -10, -100.
>
> Firstly, Thomas, do you see the same thing with your Ring?
> Secondly, can anyone clarify what exactly is happening here? Is it a
> precision problem, or something else?
>
Yes, Bill. The same happens with my Ring. If I lower my camera towards the
surface I get exactly the same artifacts.
Thomas
