Hi all. I know u probably dont like maths, but some times they are useful.
Here is a #macro to know if a point is inside a polygon. I hope it is useful
for you. I only translated the algorithm found in the web related in the
code to Pov-Ray, so if u find bugs report here. I think the code is well
commented ...
See ya. Here is the code.
// Persistence of Vision Ray Tracer Scene Description File
// File: pointinpolygon.pov
// Vers: 3.6
// Desc: Basic Scene Example
// Date: 16/10/2005
// Auth: Manuel Mata Rueda - http://www.mmata.org
#version 3.6;
#include "colors.inc"
#default{finish{ambient 1}}
camera{orthographic location <0,10,0> look_at <0,0,0>}
plane {y, 0 pigment { checker White,Gray80 }}
cylinder{0 z*10 0.05 pigment{Blue}}
cylinder{0 x*10 0.05 pigment{Red}}
//A macro to draw the spline
//--------------------------
//s spline
//i first point to draw
//j last point to draw
//step increment
//o object to put. A sphere in most cases
//c color
#macro drawSpline(s,i,j,step,o,c)
union{
#local counter=i;
#while(counter<=j)
object{o translate s(counter) pigment{c}}
#local counter=counter+step;
#end
}
#end
/*
The algorithm is from http://www.alienryderflex.com/polygon/
// Globals which should be set before calling this function:
//
// int polySides = how many corners the polygon has
// float polyX[] = horizontal coordinates of corners
// float polyY[] = vertical coordinates of corners
// float x, y = point to be tested
//
// (Globals are used in this example for purposes of speed.
// Change as desired.)
//
// The function will return TRUE if the point x,y is inside the
// polygon, or FALSE if it is not. If the point x,y is exactly on
// the edge of the polygon, then the function may return TRUE or
// FALSE.
//
// Note that division by zero is avoided because the division is
// protected by the "if" clause which surrounds it.
boolean pointInPolygon() {
int i, j=0 ;
boolean oddNODES=FALSE ;
for (i=0; i<polySides; i++) {
j++;
if (j==polySides) j=0;
if (polyY[i]<y && polyY[j]>=y || polyY[j]<y && polyY[i]>=y) {
if (polyX[i]+(y-polyY[i])/(polyY[j]-polyY[i])*(polyX[j]-polyX[i])<x) {
oddNODES=!oddNODES;
}
}
}
return oddNODES;
}
*/
#macro pointInPolygon(s,p,n)
#local polySides=n;
#local i=0;
#local j=0;
#local oddNodes=false;
#while(i<polySides)
#local j=j+1;
#if(j=polySides) #local j=0; #end
#if((s(i/polySides).z<p.z & s(j/polySides).z>=p.z) |
(s(j/polySides).z<p.z & s(i/polySides).z>=p.z))
#if(s(i/polySides).x+(p.z-s(i/polySides).z)/(s(j/polySides).z-s(i/polySides).z)*(s(j/polySides).x-s(i/polySides).x)<p.x
)
#local oddNodes=!oddNodes;
#end
#end
#local i=i+1;
#end
oddNodes;
#end
//Lets declare some splines
//-------------------------
#declare s1_firstPoint=<3,0,-2>;
#declare s1_nPoints=4;
#declare s1=spline{
linear_spline
0 s1_firstPoint
,0.25 <3,0,3>
,0.5 <-2,0,1>
,0.75 <-1,0,-3>
,1 s1_firstPoint
}
#declare s2_firstPoint=<-3,0,-3>;
#declare s2_nPoints=5;
#declare s2=spline{
linear_spline
0 s2_firstPoint
,0.2 <3,0,-1>
,0.4 <4,0,3>
,0.6 <-1,0,-1>
,0.8 <-3,0,2>
,1 s2_firstPoint
}
// What spline we use ?
//---------------------
#declare splineToUse=s2;
#declare nPoints=s2_nPoints;
// Ok lets work with that spline then
//-----------------------------------
object{drawSpline(splineToUse,0,1,0.001,sphere{0 0.05},rgb <0,0,0>)}
// Lets place a lot of points
// and see if are into the polygon
//--------------------------------
#local rangeLeftX=-4;
#local rangeLeftZ=-4;
#local rangeRightX=4;
#local rangeRightZ=4;
#local step=0.25;
#local i=rangeLeftX;
#local j=rangeLeftZ;
#while (i<=rangeRightX)
#while (j<=rangeRightZ)
object{
sphere{0 0.1}
#local isInside=pointInPolygon(splineToUse,<i,0.5,j>,nPoints);
#if (isInside) pigment{Yellow}
#else pigment{Pink}
#end
translate <i,0,j>
}
#local j=j+step;
#end
#local j=rangeLeftZ;
#local i=i+step;
#end
Post a reply to this message
Attachments:
Download 'pointinpolygon00.png' (75 KB)

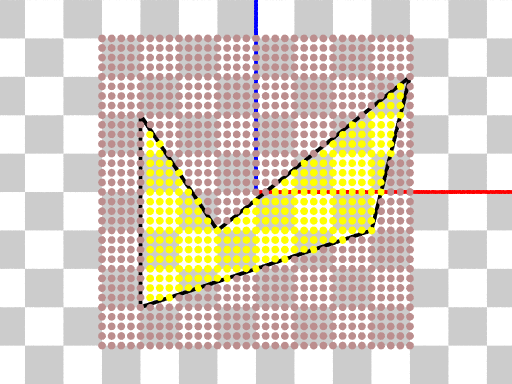

Preview of image 'pointinpolygon00.png'
