I never actually used bump_maps before. Now I try to use one, but not
seeing any effect. Can someone assist me?

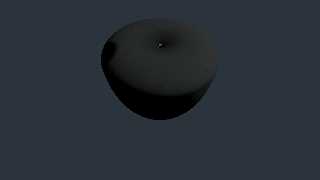

The scene contains a stratosphere helium balloon, and the bump_map
should have created the typical balloon surface. However, I don't see
the surface changed. Before posting any images, I show you the scene
file. is there any error the way I do it?
-------------------------------------------
#version 3.7;
#include "kolors.inc"
#include "finish.inc"
#include "textures.inc"
#declare MyRadiosity = off;
global_settings
{
#if(MyRadiosity)
radiosity
{
media on
pretrace_start 0.08
pretrace_end 0.001
count 400
error_bound 0.75
recursion_limit 1
}
#end
subsurface {}
adc_bailout 0.0039
ambient_light rgb < 0.000, 0.000, 0.000 >
assumed_gamma 1.000
irid_wavelength rgb < 0.250, 0.180, 0.140 >
max_trace_level 5
number_of_waves 10
noise_generator 3
charset ascii
}
camera
{
location < -000.0, 400.0, -500.0 >
look_at < 0.0, -200.0, 0.0 >
right 1.77*x
}
//
---------------------------------------------------------------------------
-------------------------------------------------------
light_source
{
< 2500.0, 2500.0, 5000.0 >
rgb < 0.72265625, 0.8046875, 0.80859375 > *10.0
}
//
---------------------------------------------------------------------------
-------------------------------------------------------
#declare MyRadius = 200.0;
//
---------------------------------------------------------------------------
-------------------------------------------------------
#declare MyOuterBalloonFinish = finish
{
// reflection 0.00
crand 0.10
}
#declare MyInnerBalloonFinish = finish
{
brilliance 1.50
phong albedo 0.05
metallic 0.00
ambient 0.00
emission 0.00
reflection 0.50
}
#declare MyOuterBalloonTexture = texture
{
pigment
{
image_map { png "H:\My Documents\My Pictures\POV-Ray\Space - Launcher
- Balloon - Type 001 - Moon Runnings - Balloon Texture.png" }
translate -0.5
rotate < 90.0, 0.0, 0.0 >
scale MyRadius*2
}
normal
{
bump_map { png "H:\My Documents\My Pictures\POV-Ray\Space - Launcher -
Balloon - Type 001 - Moon Runnings - Balloon BumpMap.png" gamma 1.8
bump_size 150.0 }
translate -0.5
rotate < 90.0, 0.0, 0.0 >
scale MyRadius*2
}
finish { MyOuterBalloonFinish }
}
#declare MyInnerBalloonTexture = texture
{
pigment { color rgb < 0.7686275, 0.7607843, 0.7333333 > }
finish { MyInnerBalloonFinish }
}
//
---------------------------------------------------------------------------
-------------------------------------------------------
#declare UpperBalloonShape = torus // Balloon Radius: 175 m /
Launcher Radius: 10 m
{
95.0, 105.0
scale < 1.0, 0.5, 1.0 >
}
#declare LowerBalloonShape = difference
{
sphere { < 0.0, 0.0, 0.0 > MyRadius }
cylinder { < 0.0, 0.0, 0.0 > < 0.0, 175.001, 0.0 > MyRadius+0.001 }
scale < 1.0, 1.5, 1.0 >
}
#declare MyBalloonHullOutside = union
{
object { UpperBalloonShape }
object { LowerBalloonShape }
texture { MyOuterBalloonTexture }
}
#declare MyBalloonHull = difference
{
object { MyBalloonHullOutside }
object
{
MyBalloonHullOutside
scale 0.99999
texture { MyInnerBalloonTexture }
}
cylinder // Launcher Openings
{
< 0.0, -((MyRadius*1.5)+0.001), 0.0 > < 0.0, (MyRadius+0.001), 0.0 > 3.5
texture { MyInnerBalloonTexture }
}
}
#declare Launcher = difference
{
union
{
#declare MyLength = 10.0;
#declare MyHeight = 0.0;
#declare MyTop = 35.0;
cylinder { < 0.0, -((MyRadius*1.5)+30.0), 0.0 > < 0.0, MyTop, 0.0 >
3.5 }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 000.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 045.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 090.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 135.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 180.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 225.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 270.0, 0.0 > }
box { < MyLength, -MyHeight, -0.1 > < -MyLength, MyTop, 0.1 > rotate <
0.0, 315.0, 0.0 > }
}
cylinder { < 0.0, -((MyRadius*1.5)+30.001), 0.0 > < 0.0, MyTop+0.001,
0.0 > 3.3 }
pigment { color rgb 1.0 }
}
#declare DoublePositionLight = union
{
union
{
cylinder { < 0.0, 0.0, 2.5 > < 10.0, 0.0, 2.5 > 0.20 }
cylinder { < 0.0, 0.0, -2.5 > < 10.0, 0.0, -2.5 > 0.20 }
pigment { color rgb < 0.05, 0.05, 0.05 > }
finish { MyOuterBalloonFinish }
}
union
{
sphere { < 10.0, 0.0, 2.5 > 0.35 }
sphere { < 10.0, 0.0, -2.5 > 0.35 }
pigment { color rgbf < 1.0, 0.0, 0.0, 0.5 > }
finish { ambient rgb < 0.3, 0.1, 0.1 > }
}
union
{
light_source
{
< 10.0, 0.0, 2.5 >
rgb < 0.7, 0.0, 0.0 > *10.0
fade_distance 50.0
fade_power 4
}
light_source
{
< 10.0, 0.0, -2.5 >
rgb < 0.7, 0.0, 0.0 > *1.0
fade_distance 50.0
fade_power 4
}
}
}
#declare PositionLights = union
{
#declare MyDistance = MyRadius-0.1;
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 000.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 045.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 090.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 135.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 180.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 225.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 270.0, 0.0 > }
object { DoublePositionLight translate < MyDistance, 0.0, 0.0 > rotate
< 0.0, 315.0, 0.0 > }
}
union
{
object { MyBalloonHull }
object { Launcher }
object { PositionLights }
}
background { rgb < 0.02392157, 0.03490196, 0.04627451 > }
---
Diese E-Mail wurde von AVG auf Viren geprüft.
http://www.avg.com
Post a reply to this message
|
|
| |
| |
|
|
|
|
| |
| |
|
|
Am 16.07.2017 um 01:40 schrieb Sven Littkowski:
> I never actually used bump_maps before. Now I try to use one, but not
> seeing any effect. Can someone assist me?
>
> The scene contains a stratosphere helium balloon, and the bump_map
> should have created the typical balloon surface. However, I don't see
> the surface changed. Before posting any images, I show you the scene
> file. is there any error the way I do it?
I don't see you adapting the texture to the shape of the balloon (such
as by the use of `map_type`, spherical warp, or UV mapping).
Post a reply to this message
|
|
| |
| |
|
|
|
|
| |
| |
|
|
Sven Littkowski <I### [at] SvenLittkowski name> wrote:
> I never actually used bump_maps before. Now I try to use one, but not
> seeing any effect. Can someone assist me?

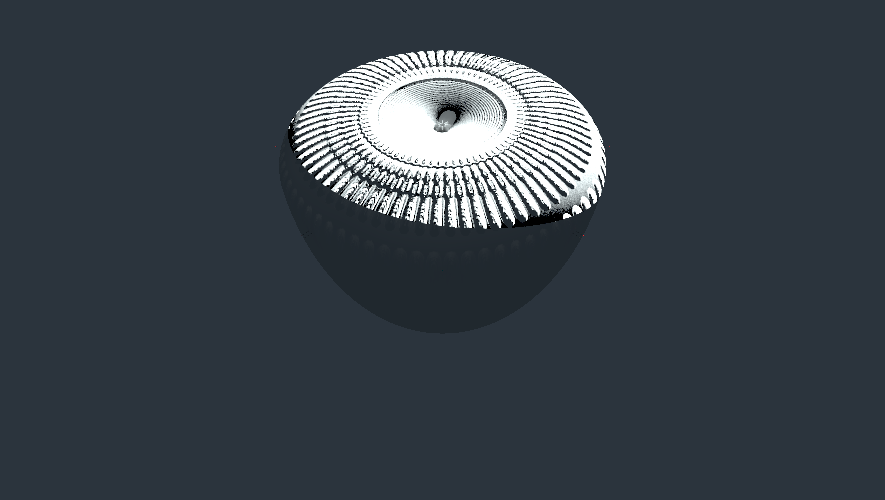

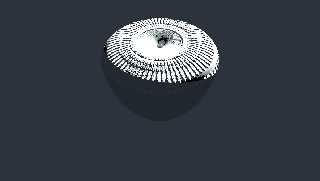

Here's what I managed to do with it, changed many things so your scene file will
look different. See whole scene file text below.
I discovered something, caught me by surprise, when using a planar mapping for a
bump map the opposite side will invert the normal. Well, not too surprising if
on a plane {y,0} for example, but I didn't think about the inversion for a
spherical shape like your balloon.
That might not be so much a problem, because I easily solved that by using
opposite scale (as you will see in SDL changes). The real problem I encountered
is how the vertical portions of balloon lose bumpiness. I realize it could be
dealt with by using a non-planar mapping, or maybe warp (that I was unsuccessful
with), but the image file is not usable as such.
Someone else might be able to alter it but I didn't try more than applying
spherical and cylindrical warp {} to the planar image/bump map.

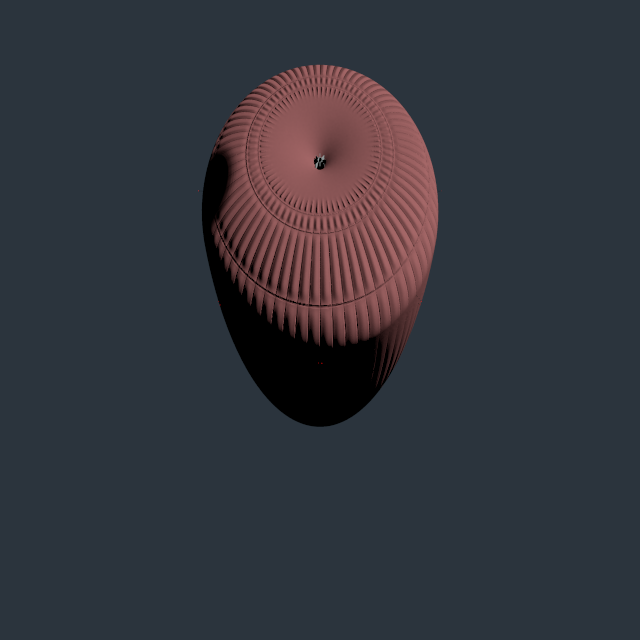

Including enhanced image file here too. It was indeed low contrast before, which
can be bad for this kind of thing. You should be able to see how the bumpiness
is shown now, mainly for upper and lower parts of balloon, yet flattens out on
the sides as I said.
Remember I changed things like lights, textures, too so you are going to need to
do whatever changes you want to this. At least I think you should see the
bumpiness anyhow.
