All, Thought I'd pass along another variation of Sam's silhouette image
to isosurface technique. This one showing how to make planar isosurface
star fields. Though the max gradient must be relatively high here – I
used 512 – most any 2D image can be made an isosurface with a function
like : abs(z*(1000/9))+Fnct00(x,y,z).grey-0.52. The value 9 sets a z
thickness of roughly 18/1000 for full black pixels and less thick for
grey moving to white. The images need to be relatively large. I've been
using 1000x1000 to 2500x2500 pixels.

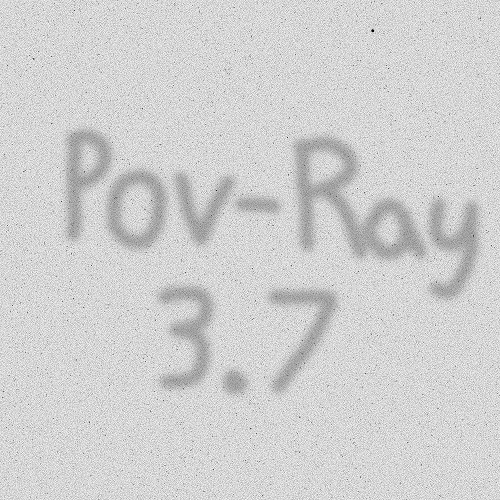

Start with an image like blurExample.jpg (scaled down as posted for file
size) where the background “star field” has been created with GIMP's
dotify command. With a GIMP pencil I wrote on another GIMP layer
“POV-Ray 3.7” and heavily blurred the layer. The opacity of the written
layer was adjust downward to about 25% over the “dotify” layer. Idea is
to create the base star field with dotify then darken it slightly to
create areas of more stars.

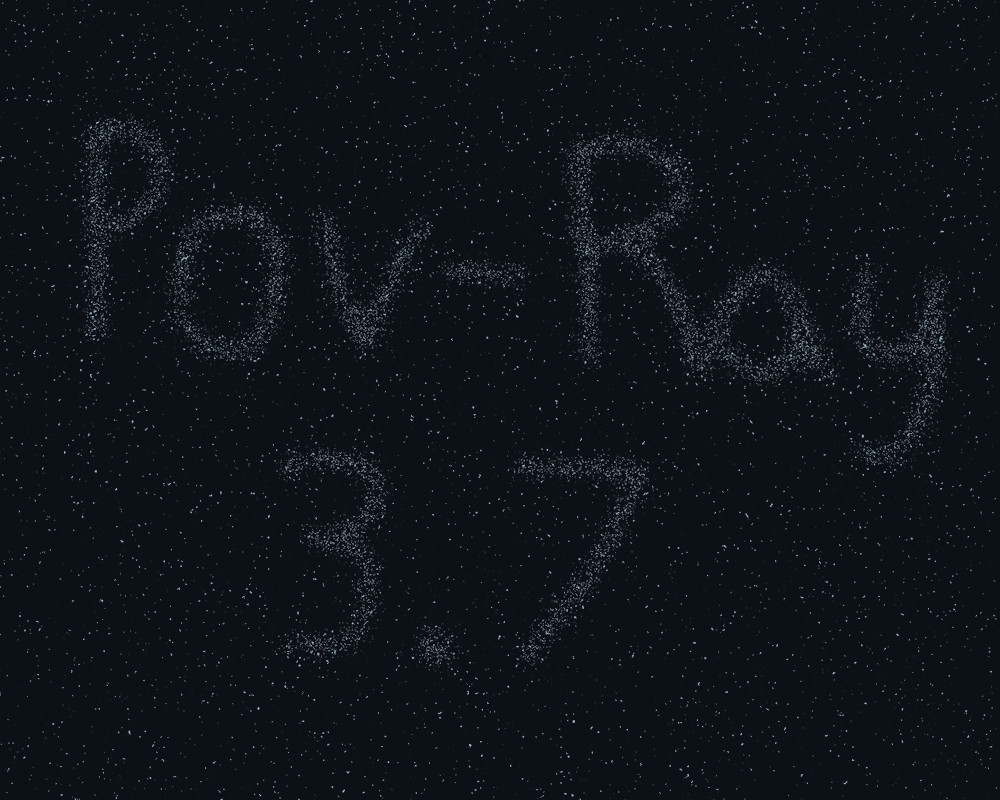

The rendered example result (<30 seconds on i7-920) is shown in

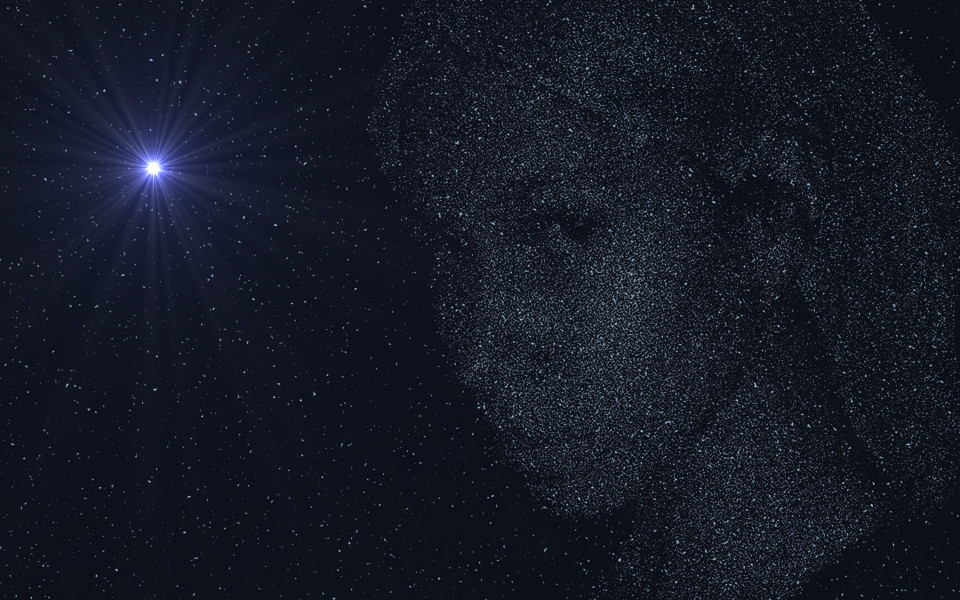

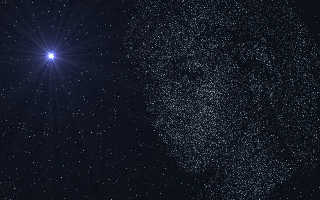

StarFieldExample.jpg. Another variation can be seen in MadOfStars960.jpg
where the GIMP supernova effect was used post povray for the supernova.
The colors in the stars in the star field, of the blob-ish shapes, was
set with several colored lights variously positioned.
Funct00 is something like :
pigment{image_map {"blur.png" gamma 1.0 once map_type 0 interpolate 3 }}
If the opacity of the written layer is 100% the writing becomes solid,
rounded letters.
Have fun.
Bill P.
