On 7/7/2025 8:40 AM, jr wrote:

>
> very good practice/advice.  fwiw, a suitable editor helps, for instance using
> 'vim' makes jumping between opening and closing brace/parenthesis/bracket a
> single (shifted) key press.

I have tried to use vim, but I have fallen into the convenience of the
Run button in the Windows UI. I have a Linux Mint machine but haven't
found a nice workflow with POV-Ray and Vim.

Uncle Josh

Post a reply to this message

hi,

kurtz le pirate <kur### [at] freefr> wrote:
> ...
> A long time ago, I started doing the same thing (but in Perl). ...

way more ambitious though, line numbers ! :-).  I don't "speak" perl, and ran
into trouble when i tried the script (for which thanks) on a Debian VM; attached
a screenshot.


regards, jr.

Post a reply to this message

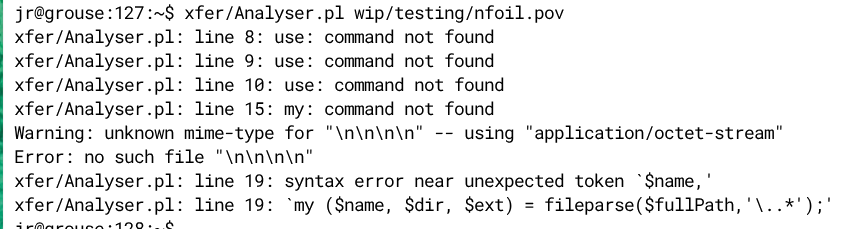

Attachments:
Download 'screenshot 2025-07-09 08.18.58.png' (42 KB)

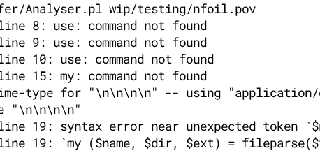

Preview of image 'screenshot 2025-07-09 08.18.58.png'

hi,

Josh English <Jos### [at] joshuarenglishcom> wrote:
> On 7/7/2025 8:40 AM, jr wrote:
> > ... 'vim' makes jumping ... a single (shifted) key press.
>
> I have tried to use vim, but I have fallen into the convenience of the
> Run button in the Windows UI. I have a Linux Mint machine but haven't
> found a nice workflow with POV-Ray and Vim.

looked but cannot, of course, now find the reference. :-)  LeForgeron (I think)
posted an image / chart depicting his setup.  I use the below in my '~/.vimrc',
which is based on / derived from that "tip".  my "workflow" when writing scene
code is to occasionally do a ":make" to confirm there are no typos etc, ie am at
that point only interested in the parsing; for that I have a dedicated
"one-liner" shell script, "povparse", also below.  workflows are v individual,
but LeForgeron's "method" works for me.


regards, jr.

-----<snip>-----
"
au Filetype pov setlocal makeprg=povparse\ +i%
au Filetype povini setlocal makeprg=povparse\ %
au BufRead,BufNewFile, *.ini set filetype=povini

-----<snip>-----
#!/bin/sh
/usr/bin/nice -n 19 /usr/local/bin/povray-3.8.0-beta.2 +w32 +h32 -d -f -p -gr
-gs $*

Post a reply to this message

"jr" <cre### [at] gmailcom> wrote:
> kurtz le pirate <kur### [at] freefr> wrote:
> > ...
> > A long time ago, I started doing the same thing (but in Perl). ...
>
> way more ambitious though, line numbers ! :-).  I don't "speak" perl, and ran
> into trouble when i tried the script (for which thanks) on a Debian VM; attached
> a screenshot.

ignore.  the trouble was the 1st line, all good w/out that comment line.


regards, jr.

Post a reply to this message

On 09/07/2025 09:25, jr wrote:
> hi,
>
> kurtz le pirate <kur### [at] freefr> wrote:
>> ...
>> A long time ago, I started doing the same thing (but in Perl). ...
>
> way more ambitious though, line numbers ! :-).  I don't "speak" perl, and ran
> into trouble when i tried the script (for which thanks) on a Debian VM; attached
> a screenshot.
>
>
> regards, jr.



A yes, the script uses the "File::Basename" module, which is not present
in your system. I use cpan to install/manage modules. More infos here :
<https://wiki.debian.org/PerlFAQ> :.

cpan
install File::Basename




more ambitious : yes, lines numbers, list of vars and where vars are
used. but it's a wip...



--
kurtz le pirate
compagnie de la banquise

Post a reply to this message

hi,

kurtz le pirate <kur### [at] freefr> wrote:
> On 09/07/2025 09:25, jr wrote:
> > ...
> > way more ambitious though, line numbers ! :-). ...
> ...
> more ambitious : yes, lines numbers, list of vars and where vars are
> used. but it's a wip...

agree, a list of the variables and so on is very useful to have, in particular
when "playing" with unfamiliar (someone else's :-)) code.

I don't know MacOS, do you have/use the 'less' and 'vim' programs ?  both can
use  "tags" files created by 'ctags'.  that program, patched[*], can give you
variables, and usage; for instance below the first few lines output based on one
of your scenes (Oct 31st 2023):

$ ectags --sdl-kinds=v -ux pursuitcurve.pov
displayAxis      variable     33 pursuitcurve.pov #declare displayAxis = false;
displayPlane     variable     34 pursuitcurve.pov #declare displayPlane = false;
AxisLen          variable     37 pursuitcurve.pov #declare AxisLen = 16;
Scale            variable     39 pursuitcurve.pov #declare Scale =
AxisLen/image_width;
C                variable    115 pursuitcurve.pov #local C =
_Brightness*_Saturation;
X                variable    116 pursuitcurve.pov #local X = C - (1 -
abs(mod(_Hue/60,2) - 1));
m                variable    117 pursuitcurve.pov #local m = _Brightness-C;
....

only requesting variables, the '-ux' selects an unsorted cross-reference format
to console/terminal; when invoked without options, it'll write a "tags" file.

[*] <drive.google.com/file/d/10ikrIHkMopedFPlq6V4YhnnNn3sY59hC/view?usp=sharing>


regards, jr.

Post a reply to this message

On 10/07/2025 20:30, jr wrote:
> hi,
>
> kurtz le pirate <kur### [at] freefr> wrote:
>> On 09/07/2025 09:25, jr wrote:
>>> ...
>>> way more ambitious though, line numbers ! :-). ...
>> ...
>> more ambitious : yes, lines numbers, list of vars and where vars are
>> used. but it's a wip...
>
> agree, a list of the variables and so on is very useful to have, in particular
> when "playing" with unfamiliar (someone else's :-)) code.
>
> I don't know MacOS, do you have/use the 'less' and 'vim' programs ?  both can
> use  "tags" files created by 'ctags'.  that program, patched[*], can give you
> variables, and usage; for instance below the first few lines output based on one
> of your scenes (Oct 31st 2023):

Yes, i have less and vim.
I'm not familiar with this type of tags/ctags



> $ ectags --sdl-kinds=v -ux pursuitcurve.pov
> displayAxis      variable     33 pursuitcurve.pov #declare displayAxis = false;
> displayPlane     variable     34 pursuitcurve.pov #declare displayPlane = false;
> AxisLen          variable     37 pursuitcurve.pov #declare AxisLen = 16;
> Scale            variable     39 pursuitcurve.pov #declare Scale =
> AxisLen/image_width;
> C                variable    115 pursuitcurve.pov #local C =
> _Brightness*_Saturation;
> X                variable    116 pursuitcurve.pov #local X = C - (1 -
> abs(mod(_Hue/60,2) - 1));
> m                variable    117 pursuitcurve.pov #local m = _Brightness-C;
> ....
>
> only requesting variables, the '-ux' selects an unsorted cross-reference format
> to console/terminal; when invoked without options, it'll write a "tags" file.
>
> [*] <drive.google.com/file/d/10ikrIHkMopedFPlq6V4YhnnNn3sY59hC/view?usp=sharing>



I'll take a look.


> regards, jr.

;)


--
kurtz le pirate
compagnie de la banquise
