Hi(gh)!
> <shrugs>
>
> We'll probably need more information then.
> Maybe you simply got the colour wrong?
>

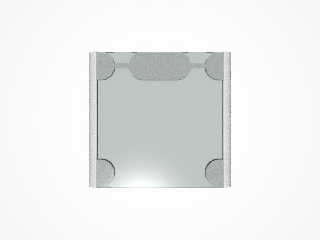

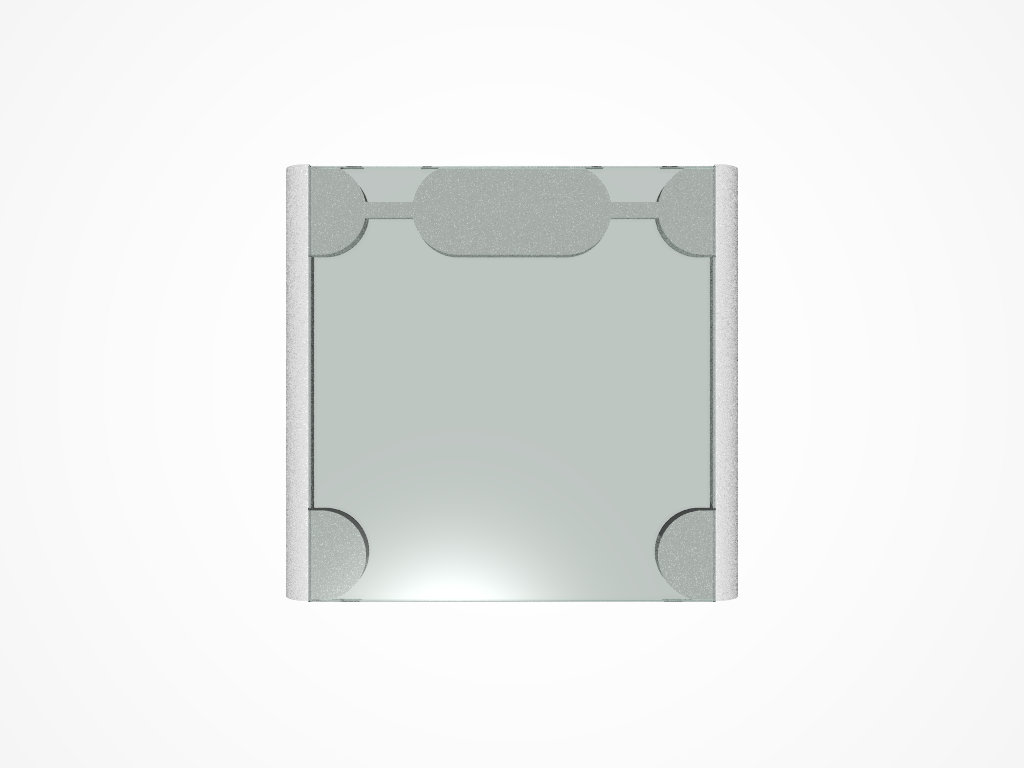

O.k., here is the code:
// begin code
#version 3.7;
#include "glass.inc"
global_settings
{
max_trace_level 10
}
// TEXTURES
#declare T_Grey_Matted_Plastic=
texture
{
pigment { color rgb 0.7 }
finish
{
ambient 0.1
diffuse 1
brilliance 0.4
phong 0.8
phong_size 60
}
normal
{
granite
turbulence 100
}
}
// MATERIALS
#declare M_PaneGlass=
material
{
texture
{
pigment
{
color rgbft <0.99, 1, 0.99, 0.49, 0.49>
}
finish { F_Glass5 }
}
interior
{
ior 1.52
fade_color <0, 0.6, 0.35>
fade_power 1001
fade_distance 0.1
}
}
light_source
{
<0, 2.4, -0.5>
color rgb 1
}
sky_sphere
{
pigment
{
gradient y
color_map
{
[0 rgb 1]
[1 rgb 0]
}
}
}
/* plane
{
y, 0
texture
{
pigment { color rgb 1 }
finish { ambient 0.15 diffuse 1 brilliance 0.2 }
}
} */
#declare Glass_Pane_Bevel_Cutoff =
box
{
<-0.155, -0.001*sqrt(2)/2, -0.025>, <0.155, 0.001*sqrt(2)/2, 0.025>
}
#declare Glass_Pane =
difference
{
box
{
0, <0.28, 0.013, 0.3>
}
object // upper front bevel
{
Glass_Pane_Bevel_Cutoff
rotate <315, 0, 0>
translate <0.14, 0.013, 0>
}
object // lower front bevel
{
Glass_Pane_Bevel_Cutoff
rotate <45, 0, 0>
translate <0.14, 0, 0>
}
object // upper right bevel
{
Glass_Pane_Bevel_Cutoff
rotate <45, 90, 0>
translate <0.28, 0.013, 0.15>
}
object // lower right bevel
{
Glass_Pane_Bevel_Cutoff
rotate <315, 90, 0>
translate <0.28, 0, 0.15>
}
object // upper left bevel
{
Glass_Pane_Bevel_Cutoff
rotate <45, -90, 0>
translate <0, 0.013, 0.15>
}
object // lower left bevel
{
Glass_Pane_Bevel_Cutoff
rotate <315, -90, 0>
translate <0, 0, 0.15>
}
object // upper back bevel
{
Glass_Pane_Bevel_Cutoff
rotate <45, 0, 0>
translate <0.14, 0.013, 0.3>
}
object // lower back bevel
{
Glass_Pane_Bevel_Cutoff
rotate <315, 0, 0>
translate <0.14, 0, 0.3>
}
hollow
}
#declare Frame_Corner_Base_Raw=
union
{
box { 0, <0.00788, 0.02214, 0.06224> }
difference
{
cylinder { <0.00788, 0, 0.03112>, <0.00788, 0.02214, 0.03112>,
0.03112 }
box { <-0.05, -0.01, -0.01>, <0.00788, 0.03, 0.07> }
}
}
#declare Plastic_Frame_Side_Part=
difference
{
cylinder
{
0, <0, 0, 0.302>, 1
scale <0.02, 0.03056, 1>
}
box
{
<-0.05, -0.05, -0.01>, <0.05, 0, 0.31>
}
box
{
<0, -0.05, -0.01>, <0.05, 0.1, 0.31>
}
}
#declare Central_Unit_Block=
union
{
cylinder { 0, <0, 0.02214, 0>, 0.03112 }
box { <0, 0, -0.03112>, <0.07566, 0.02214, 0.03112> }
cylinder { <0.07566, 0, 0>, <0.07566, 0.02214, 0>, 0.03112 }
}
#declare Fillet=
box
{
0, <0.036, 0.009, 0.011>
}
#declare Plastic_Frame=
union
{
object { Plastic_Frame_Side_Part }
object { Frame_Corner_Base_Raw }
object { Frame_Corner_Base_Raw translate <0, 0, 0.23976>}
object { Plastic_Frame_Side_Part rotate <0, 180, 0> translate <0.28,
0, 0.302>}
object { Frame_Corner_Base_Raw rotate <0, 180, 0> translate <0.28, 0,
0.06224>}
object { Frame_Corner_Base_Raw rotate <0, 180, 0> translate <0.28, 0,
0.302>}
object { Central_Unit_Block translate <0.10217, 0, 0.27088> }
object { Fillet translate <0.03718, 0.01314, 0.26538> }
object { Fillet translate <0.20713, 0.01314, 0.26538> }
}
// 0.03236 x
// 0.009 y
// 0.011 z
object
{
Glass_Pane
material { M_PaneGlass }
translate <0, 0.022141, 0>
}
object
{
Plastic_Frame
texture { T_Grey_Matted_Plastic }
}
#declare view=4;
camera
{
#switch(view)
#case (0)
location <0.01, 0.015, -0.2>
look_at <0.01, 0.015, 0.30>
#break
#case (1)
location <0.14, 0.65, -0.7>
look_at <0.14, 0.0125, 0.001>
#break
#case (2)
location <0.95, 0.65, 0.15>
look_at <0.14, 0.0065, 0.15>
#break
#case (3)
location <0.14, 0.65, -0.7>
look_at <0.14, 0.0065, 0.15>
#break
#case (4)
location <0.14, 1, 0.15>
look_at <0.14, 0, 0.15>
#break
#end
angle 40
}
// end code
See you in Khyberspace!
Yadgar
