On 2021-01-30 4:02 PM (-4), Cousin Ricky wrote:
> See thread "FYI. Watch out for bad color to grey value conversions." in
> povray.unix.
>
> Macro Light_Color_Filtered() in Lightsys IV uses .gray, so scenes using
> this macro are unlikely to have proper lighting under the latest 3.8
> build.  This situation is temporary, until 3.8 is debugged; but in the
> meantime, this workaround should work:
>
> First, add this macro to lightsys.inc:
>
>    #macro Light_DotGray (C)
>      (0.297 * C.red + 0.589 * C.green + 0.114 * C.blue)
>    #end
>
> Then change the Light_Color() call in macro Light_Color_Filtered() to:
>
>    Light_Color(Lct*Flt,Lm*Light_DotGray(filtered)/Light_DotGray(Lct))
>
> I haven't tested this yet, ...

I tested the workaround, and it works.  The following light sources are
of the hues -3, 15, 50, 135, 232.5, and 270.  Not only are the light
intensities compromised in the 3.8 original render, but any light with
no green component is zeroed out entirely.  With a lower saturation, the
bug is less extreme, but still noticeable.

Post a reply to this message

Attachments:
Download 'ls4-light_color_filtered-wa-s1-v37.jpg' (14 KB) Download 'ls4-light_color_filtered-wa-s1-v38a.jpg' (13 KB) Download 'ls4-light_color_filtered-wa-s1-v38w.jpg' (15 KB)

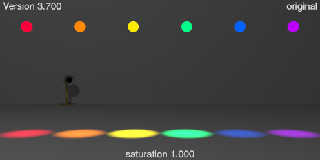

Preview of image 'ls4-light_color_filtered-wa-s1-v37.jpg'

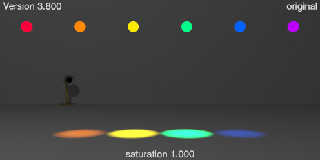

Preview of image 'ls4-light_color_filtered-wa-s1-v38a.jpg'

Preview of image 'ls4-light_color_filtered-wa-s1-v38w.jpg'
